Understanding the Key Differences Between Distributed I/O and Remote I/O Systems

In industrial automation, managing input and output (I/O) signals effectively is crucial for smooth operations. Two of the most common systems for managing I/O in automation are Distributed I/O and Remote I/O. Although both are designed to help streamline machine control and monitoring, they differ significantly in architecture, applications, and their suitability for different operational environments.

What is Distributed I/O?

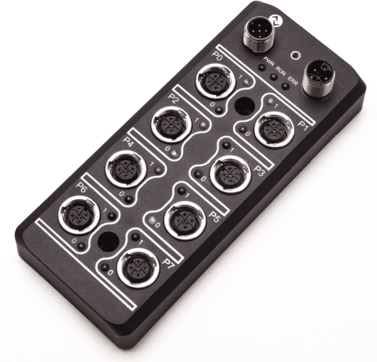

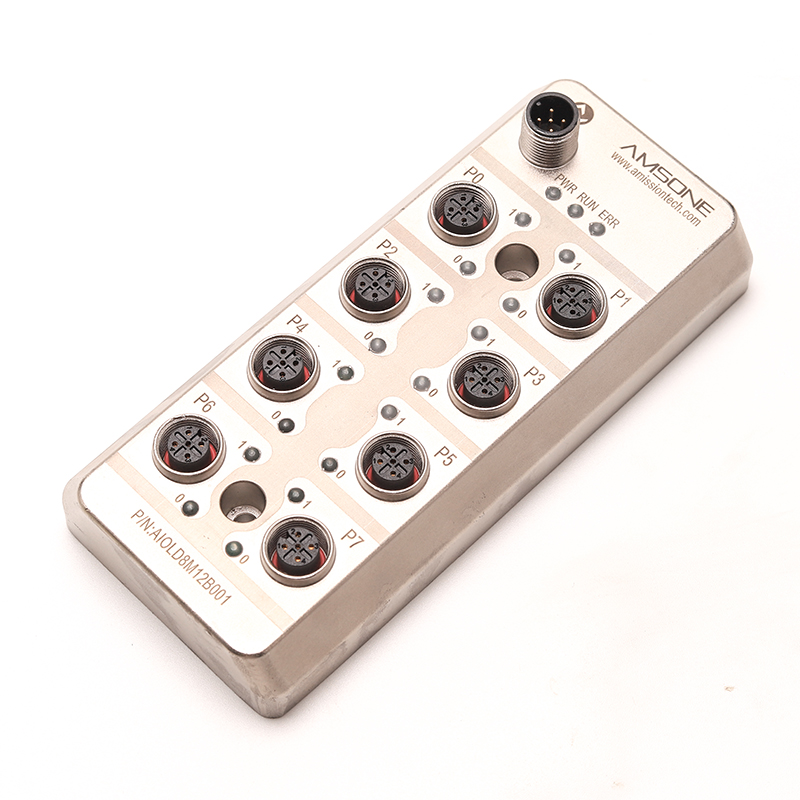

A Distributed I/O system, also known as Decentralized I/O, is characterized by placing I/O modules near the field devices they control. These devices, such as sensors and actuators, are connected directly to the I/O modules, which communicate with a central controller (often a PLC) through a network like Ethernet, Profibus, or Modbus.

Key Benefits of Distributed I/O:

1. Proximity to Field Devices: I/O modules are physically closer to the devices they monitor or control, reducing wiring complexity and minimizing signal interference. This setup allows for quicker signal transmission, which is essential for real-time control.

2. Cost and Wiring Reduction: With I/O modules placed near field devices, long wiring runs are avoided, which not only reduces installation costs but also simplifies the overall wiring system.

3. Scalability and Flexibility: Distributed I/O systems are highly scalable. Additional I/O modules can be easily added as your system expands, making it ideal for environments with changing or growing requirements.

4. Real-Time Control: The short wiring lengths and minimal signal delay contribute to faster response times, making Distributed I/O well-suited for applications requiring high-speed operation, such as in manufacturing processes or material handling systems.

Applications of Distributed I/O:

• Manufacturing and Process Control: These systems are used extensively in factories for tasks like controlling sensors and actuators.

• Building Automation: In HVAC, lighting, and other building systems, Distributed I/O offers localized control and monitoring.

• Conveyor Systems: These systems benefit from Distributed I/O due to the need for real-time operation and control over many devices distributed over large areas.

What is Remote I/O?

On the other hand, Remote I/O (also known as Centralized I/O) places I/O modules in a centralized control panel or cabinet, far from the field devices. These I/O nodes are connected to the central controller via communication networks like Ethernet or Modbus.

Key Benefits of Remote I/O:

• Centralized Location: The I/O modules are housed together in a control cabinet, making it easier to manage, maintain, and troubleshoot the system.

• Reduced Environmental Exposure: Since Remote I/O modules are stored in a protected cabinet, they are less vulnerable to environmental factors like dust, moisture, or extreme temperatures. This is particularly beneficial in harsh environments such as oil rigs or wastewater treatment plants.

• Longer Wiring Runs: Remote I/O can be more practical when field devices are spread out over large areas, as it allows you to run long wires from the devices to the central I/O system.

• Simplified Troubleshooting: With all I/O modules centralized, diagnosing issues becomes more straightforward since technicians can work in a controlled environment, ensuring quicker repairs and less downtime.

Applications of Remote I/O:

• Oil and Gas Installations: Sensors spread across large areas can easily be connected to a central system using Remote I/O.

• Wastewater Treatment Plants: In these systems, field devices are often scattered over large regions, making Remote I/O an ideal solution.

• Hazardous Environments: Remote I/O is beneficial in hazardous locations as it keeps sensitive components protected inside control panels, reducing risk and ensuring durability.

Choosing Between Distributed and Remote I/O

When selecting between Distributed I/O and Remote I/O, several factors should be considered:

1. Wiring Requirements: For applications with extensive wiring needs, especially in large systems, Remote I/O is often more efficient as it allows long wire runs with a single communication cable back to the control cabinet.

2. Environmental Conditions: In harsh environments, where devices are exposed to extreme temperatures or corrosive elements, Remote I/O is a more practical solution due to its protected installation.

3. Response Time: If your application requires real-time control or fast response times, Distributed I/O should be preferred as it minimizes signal propagation delays.

4. Cost of Wiring: If minimizing wiring costs is a priority, Distributed I/O is an advantageous choice since it reduces the need for extensive cabling between field devices and the central controller.

5. Scalability: Distributed I/O systems are typically more flexible, allowing easy integration of additional I/O modules as your system grows. This makes them suitable for expanding operations or future-proofing the setup.

The Bottom Line: When to Use Each System

• Distributed I/O is ideal for environments where fast response times, reduced wiring, and scalability are essential. Its flexibility in managing a high number of devices in a localized manner makes it suitable for applications such as manufacturing, material handling, and building automation.

• Remote I/O excels in large-scale environments where devices are dispersed across significant distances. It is beneficial for installations like oil rigs, wastewater plants, or hazardous environments, where the focus is on managing a spread-out network of field devices with minimal exposure to environmental elements.

Both Distributed and Remote I/O systems have their advantages and specific use cases, and the choice ultimately depends on your application requirements, operational conditions, and long-term scalability needs. By understanding the differences, you can make a more informed decision that will optimize your automation processes and reduce integration costs.
