M12 Connectors and Their Coding: Key to Choosing the Right Connector for Your Applications

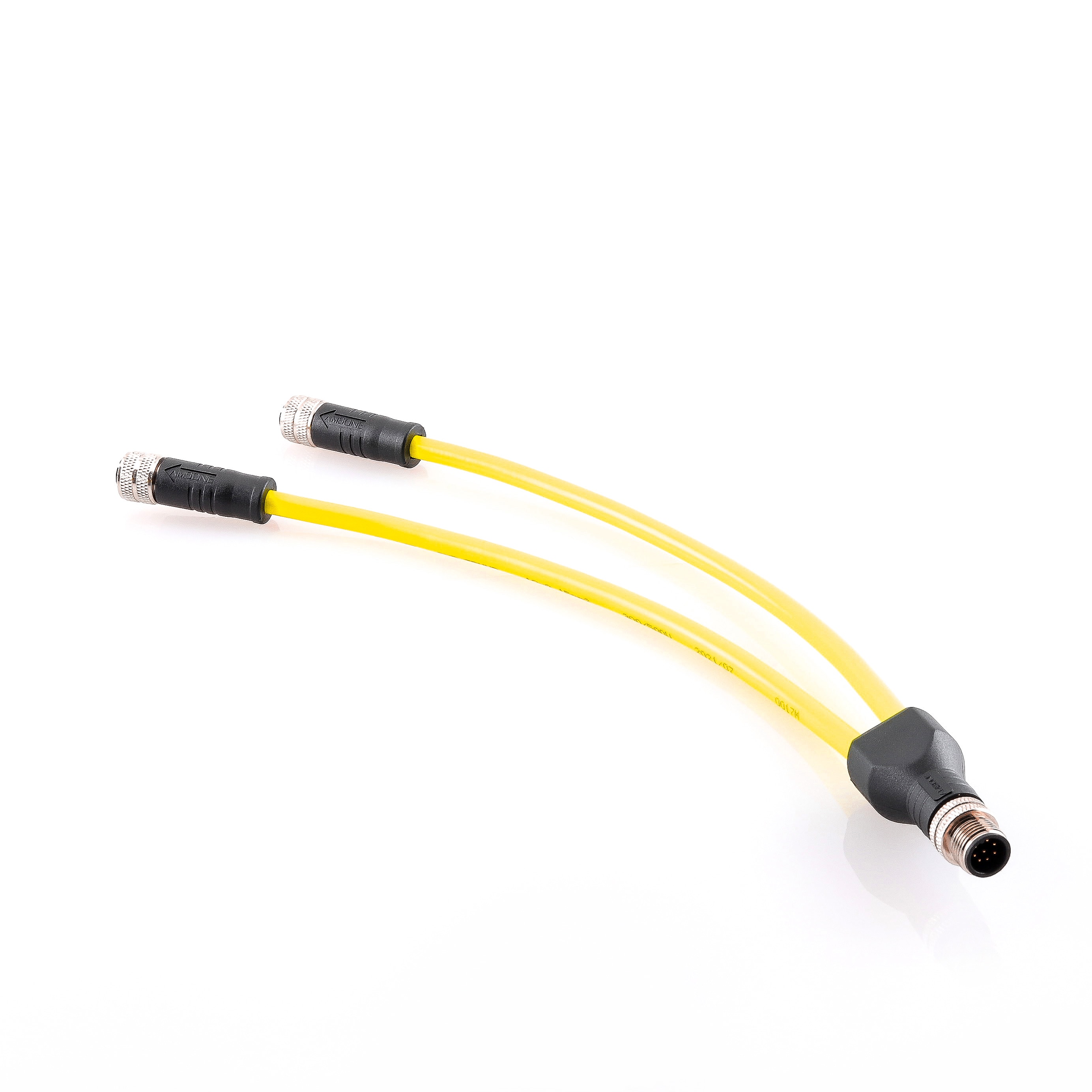

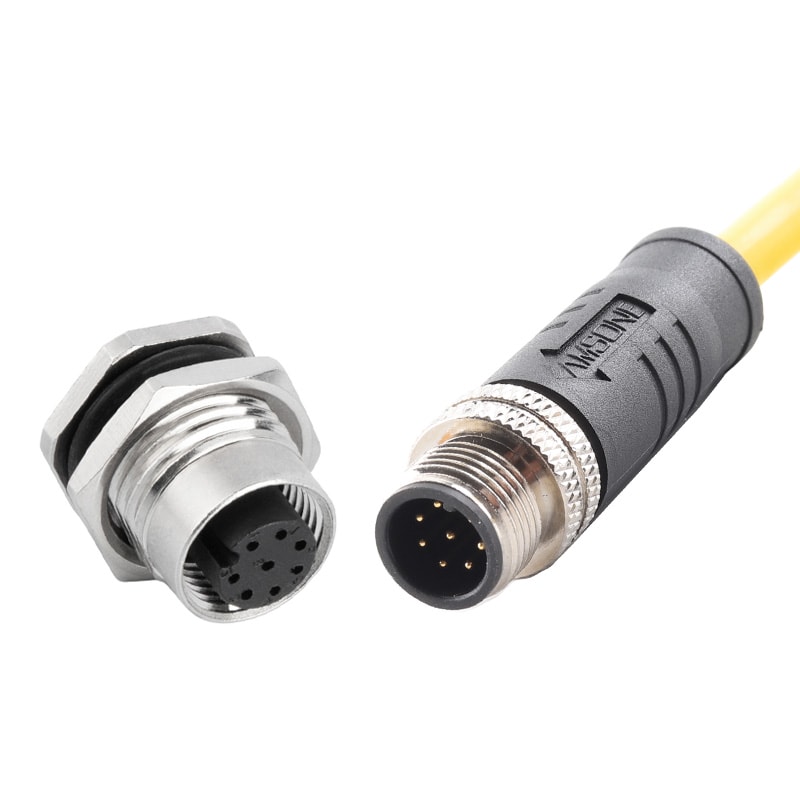

M12 connectors are essential components in industrial automation, offering secure and reliable connections in a variety of demanding environments. These circular connectors are particularly popular for use in sensors, actuators, industrial Ethernet, and fieldbus systems. However, while they may look similar at first glance, M12 connectors come in a range of designs, with one of the most important distinctions being their coding.

Understanding M12 connector coding is crucial to selecting the correct connector for your application, as the right coding ensures compatibility, reliability, and safety. Here’s a comprehensive guide to M12 connector coding, helping you make an informed decision for your industrial and automation needs.

What Is M12 Connector Coding?

M12 connectors feature different codings that define their pin configurations and usage. The coding ensures that connectors are not mismated, preventing incorrect connections that could lead to system errors or failure. These codings are built into the connector's design, with specific configurations for different industrial protocols, voltages, and data rates. Each coding corresponds to a particular application, allowing you to choose the most suitable connector for your system.

The Most Common M12 Connector Codings

Here are the most commonly used M12 connector codings and their typical applications:

1. A-coded M12 Connectors

• Application: Sensors, DC power, and 1 Gbit Ethernet

• Description: A-coded connectors are the most versatile and widely used. They are primarily used in low-voltage direct current (DC) applications, including sensors, actuators, and Ethernet connections (up to 1 Gbit). These connectors support a wide range of pin configurations, typically between 3 and 12 pins.

2. B-coded M12 Connectors

• Application: Profibus and Fieldbus systems

• Description: B-coded connectors are designed for fieldbus connections, most commonly used with protocols like PROFIBUS. These connectors are primarily used in industrial applications where control systems communicate with sensors and actuators over non-Ethernet networks.

3. C-coded M12 Connectors

• Application: AC power systems

• Description: C-coded connectors are intended for alternating current (AC) applications, including motor connections. These connectors are commonly used in industrial automation where AC power is needed, and they support voltages for motor-operated switches, power supply units (PSUs), and other AC-powered devices.

4. D-coded M12 Connectors

• Application: Industrial Ethernet (Fast Ethernet)

• Description: D-coded connectors are used for industrial Ethernet connections, such as PROFINET and EtherNet/IP. These connectors support two-pair Ethernet connections and are used primarily for fast data transmission at speeds of up to 100 Mb/s.

5. X-coded M12 Connectors

• Application: Gigabit Ethernet

• Description: X-coded connectors are designed for high-speed industrial Ethernet networks, supporting data rates up to 10 Gbit Ethernet. These connectors are specifically built to minimize crosstalk and interference, making them ideal for applications that require high-speed data exchange, such as factory automation and control systems.

Specialized M12 Codings for Power Connections

In addition to the standard coding types, there are also specialized M12 codings designed for high-power applications, offering greater voltage and current ratings:

1. K-coded M12 Connectors

• Application: AC power systems (e.g., AC motors, motor-operated switches)

• Description: K-coded connectors have five pins and are intended for AC power connections. They are rated for 630 volts and are ideal for applications such as motor connections and industrial power supply systems.

2. S-coded M12 Connectors

• Application: AC power systems

• Description: Like the K-code, S-coded connectors are used for AC applications. They feature four pins and are rated for 630 volts, typically used in motor and control applications.

3. L-coded M12 Connectors

• Application: DC power systems (e.g., DC motors, drives, LED fixtures)

• Description: L-coded connectors are designed for direct current (DC) power systems. They are used in applications such as DC motor connections, I/O modules, and LED fixtures, with ratings up to 63 volts.

4. T-coded M12 Connectors

• Application: DC power systems

• Description: T-coded connectors are another option for DC applications, featuring four pins plus a functional earth pin. They are used in applications that require a separate grounding system, and they are rated for 63 volts.

5. Y-coded M12 Connectors

• Application: Hybrid power and data connections

• Description: Y-coded connectors are hybrid connectors that support both power and data connections in a single unit. A wall inside the connector separates the power and data pins, making it a space-saving solution for applications that require both types of connections.

Why Is M12 Connector Coding Important?

M12 connector coding ensures that connectors can only be inserted into matching sockets, preventing the wrong connectors from being used in incompatible applications. This is essential in preventing potential damage to electrical systems or devices caused by incorrect connections. By using the right coding, you can streamline installation, minimize the risk of errors, and improve system reliability.

Conclusion

When selecting an M12 connector for your application, it’s important to understand the different coding options available. Whether you need a connector for low-voltage DC sensors, high-speed Ethernet data transfer, or AC power systems, selecting the right M12 coding will ensure optimal performance and safety. Understanding M12 connector coding can save you time and avoid costly mistakes, so always ask the right questions before making your purchase.
