Unraveling the World of Circular Connectors: A Definitive Guide

In the realm of electrical connectivity, circular connectors are the unsung heroes, quietly powering and connecting a vast array of devices across numerous industries. If you're in the market for a reliable, durable, and versatile connection solution, understanding circular connectors is key. Let's embark on this journey to discover everything about them.

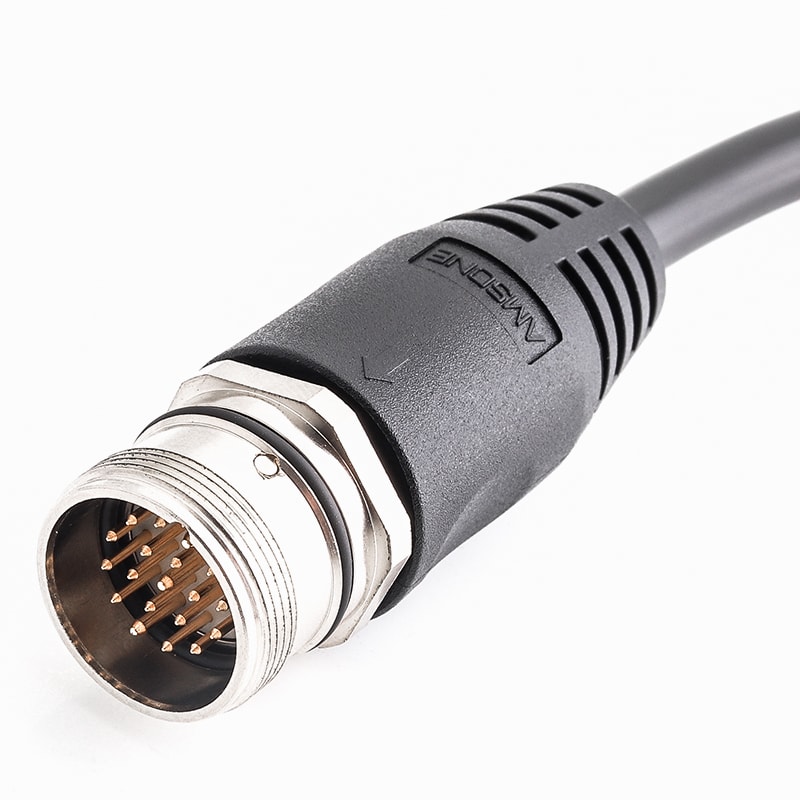

What Exactly Are Circular Connectors?

At their core, circular connectors are cylindrical electrical devices. Their defining feature is the circular mating surface, which houses multiple pins or contacts. These contacts play a crucial role as they transfer electrical power, signals, or data between different components.

Think of them as the communication hubs within an electrical system. They use a multi - pin electrical interconnect method, relying on mechanical springs to create a force that brings the two halves of the connector together. This force ensures a solid metal - to - metal contact at the mating interface, resulting in a stable and reliable connection.

These connectors are not just any ordinary electrical components. Their cylindrical shape makes them rugged, durable, and weather - resistant. They can withstand the test of time, vibration, temperature fluctuations, and exposure to dust and moisture, making them ideal for applications where a long - lasting and secure connection is essential.

Where Are Circular Connectors Used?

Circular connectors have found their way into a multitude of industries, becoming an integral part of various applications.

In the industrial sector, they are everywhere. From powering and transmitting signals in large - scale manufacturing equipment to connecting sensors and actuators in factory automation systems, circular connectors ensure seamless operation. In transportation, they are used in vehicles, trains, and even aircraft, where a secure and reliable connection is non - negotiable.

The telecommunications industry also relies heavily on circular connectors. They are used to transmit data between different network devices, ensuring fast and stable communication. In the aerospace and defense fields, circular connectors are designed to withstand extreme conditions, making them perfect for use in satellites, military aircraft, and other high - tech equipment.

Even in the medical field, circular connectors play a vital role. They are used in electronic medical equipment, ensuring that cables stay connected during patient movement and procedures, which is crucial for accurate diagnosis and treatment.

Advantages That Make Circular Connectors Stand Out

One of the most notable advantages of circular connectors is their compact and durable design. Their cylindrical shape provides a higher strength - to - weight ratio compared to other connector shapes. This means they can resist impact damage, accidental decoupling, and the effects of outside elements.

They come with a variety of locking mechanisms. Threaded connections, bayonet locking, and push - pull locking are some common options. These locking mechanisms ensure a secure and safe connection, reducing the risk of disconnection due to vibration or mechanical stress.

Circular connectors also offer excellent shielding against radio frequency interference (RFI) and electromagnetic interference (EMI). This shielding is crucial in applications where signal integrity is vital, as it prevents signal degradation, data corruption, and equipment damage.

Moreover, they are available in a wide variety of sizes, pin configurations, and contact arrangements. This versatility allows them to accommodate different signal types, power requirements, and data transmission needs, making them suitable for almost any application.

Different Types of Circular Connectors

Circular connectors can be classified based on several factors, each catering to specific application requirements.

Coupling Types

• Bayonet Coupling: This type is known for its quick and easy connection and disconnection. It involves a simple twisting motion to lock and unlock the connector, making it ideal for applications where speed is of the essence.

• Threaded Coupling: Threaded circular connectors offer a highly secure connection. The coupling nut is rotated to tighten the connection, ensuring a tight fit that can withstand high levels of vibration and mechanical stress.

• Push - Pull Coupling: As the name suggests, this coupling type allows for connection and disconnection with a simple push or pull motion. It's convenient for applications where quick access is required, such as in some medical equipment or field - deployable devices.

Housing Material

• Circular Plastic Connectors (CPC): Made from plastic or polymer - based materials, CPCs are lightweight, cost - effective, and versatile. They are suitable for applications where weight is a concern or in environments with less severe mechanical stress.

• Circular Metal - Shell Connectors (CMC): These connectors are primarily made of aluminum, stainless steel, or brass. The metal housing provides effective shielding against EMI and RFI, making them suitable for applications where electromagnetic interference is a concern.

Parts of a Circular Connector

A circular connector is made up of several key components, each playing a crucial role in its functionality.

• Connector Housing: This is the outer casing or body of the connector. Its main function is to protect the internal components from damage, dust, and moisture.

• Contact Pins: These are the conductive elements within the connector. They establish the electrical connection between the mating connectors, allowing for the transfer of power, signals, or data.

• Contact Finish: The contact finish is a surface coating or plating applied to the contact pins. It improves conductivity and durability, ensuring a reliable connection over time.

• Contact Interface: This is the point of contact between the male and female contacts of mated connectors. A proper contact interface is essential for a stable electrical connection.

• Shell: The shell encloses the connector housing and offers added strength, protection, and corrosion resistance. It also helps in aligning the connector halves during mating.

Terminal Options for Circular Connectors

Circular connectors support a wide range of termination options, each with its own advantages and suitable applications.

• Crimp Termination: This involves using a crimping tool to compress a metal sleeve around the wire and the contact pin. Crimp termination provides a secure and reliable connection, often used in applications where vibration is a concern.

• Solder Termination: Soldering involves melting a filler metal to join the wire to the contact pin. It offers a strong and permanent connection, commonly used in applications where a high - quality electrical connection is required.

• Screw Termination: Screw terminals use a screw to clamp the wire onto the contact pin. This option allows for easy connection and disconnection, making it suitable for applications where the connector may need to be adjusted or replaced frequently.

• Lug Termination: Lug terminals are used for connecting large - gauge wires. They provide a secure connection and are often used in high - power applications.

• Wire Wrap Termination: Wire wrap involves wrapping the wire around a post on the contact pin. This method is often used in applications where a low - cost and reliable connection is needed.

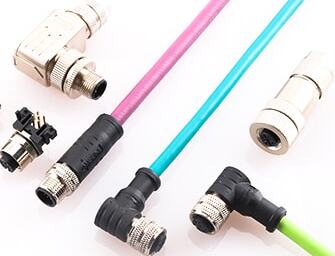

M5, M8, and M12 Circular Connectors: What's the Difference?

M5, M8, and M12 connectors are part of the metric - sized circular connector family, and they differ primarily in size and specifications.

The M5 circular connector has a diameter of about 5mm and typically has pin configurations ranging from three to five pins. Its small size makes it suitable for applications where space is limited. The threaded connection mechanism of the M5 ensures a secure and reliable connection, and it also offers protection against foreign particles, moisture, and water.

M8 circular connectors, with an 8mm diameter, are available in several pin configurations, ranging from three to eight pins. They are circular in shape and feature a threaded locking mechanism. M8 connectors are commonly used in demanding environments, such as industrial automation, sensor systems, and robotics, where a reliable connection in harsh conditions is required. They often come with additional shielding options to protect against EMI.

The M12 connector has a 12mm diameter and a locking thread. It is widely used in factory automation settings to connect actuators, sensors, Industrial Ethernet, and fieldbus devices. M12 connectors are available in various pin configurations, with pin counts ranging from three to twelve, providing flexibility to accommodate different signal and power requirements. They often carry high ingress protection ratings like IP67 or IP68, ensuring protection against moisture, contaminants, temperature fluctuations, mechanical stress, and exposure to chemicals.

Accessories That Complement Circular Connectors

Circular connectors can be paired with a range of accessories to optimize their performance and adapt them to different applications.

• Sealing Gaskets and O - rings: These are used to provide environmental sealing, protecting the connector from moisture, dust, and other contaminants. They are especially important in applications where the connector is exposed to harsh environments.

• Backshells: Backshells offer mechanical protection and strain relief to the cable and connector interface. They prevent cable bending or pulling forces from damaging the connector or causing disconnection.

• Caps and Dust Covers: These are used to protect the connector when it's not in use. They prevent dirt, moisture, and debris from entering the connector, which could lead to damage or poor connection quality.

• Adapters: Adapters enable compatibility between different types of circular connectors. They allow for the connection of connectors with varying sizes, pin configurations, or gender types.

• Cable Clamps: Cable clamps are used to secure the cable to the connector, providing strain relief and preventing accidental cable disconnection.

• Contacts and Contact Removal Tools: Additional contacts or replacement contacts may be needed for specific applications, and contact removal tools are used to safely remove contacts from the connector without causing damage.

• Connector Hoods: Connector hoods are protective covers that enclose the entire connector and cable assembly, providing additional mechanical protection, especially in rugged conditions.

• Panel Mounts and Mounting Hardware: Panel mounts are used to secure the connector to a surface, such as a control panel or equipment chassis, and mounting hardware ensures a secure attachment.

• Termination Tools: These tools aid in the installation and termination of cables to the connector, such as crimping tools, soldering irons, and other specialized tools depending on the connector type and termination method.

How to Choose the Right Circular Connector

Selecting the appropriate circular connector for your application requires careful consideration of several factors.

Electrical Requirements

Determine the voltage rating, current capacity, and signal requirements of your application. Ensure that the connector you choose can handle these electrical parameters without any issues.

Environmental Conditions

Assess the environmental conditions the connector will be exposed to. Consider factors such as temperature extremes, moisture, dust, vibration, and chemical exposure. Select a connector with the appropriate ingress protection (IP) rating, sealing options, and ruggedness to withstand these conditions.

Mechanical Specifications

Think about the number of contacts/pins required, the contact arrangement (pin/socket configuration), the shell size, and the mounting options (panel mount, cable mount, etc.). Make sure the connector is compatible with your existing equipment or devices.

Termination Method

Decide on the preferred termination method based on your application and expertise. Whether it's soldering, crimping, screw terminals, or insulation displacement connections (IDC), choose a connector that supports your desired method.

Connector Series and Compatibility

Check if there are specific connector series or families that are commonly used or preferred in your industry or application. This can help ensure compatibility with other equipment, cables, or accessories.

Standards and Certifications

Consider any industry - specific or regulatory standards that your application needs to comply with. Look for connectors that meet relevant standards and certifications, such as MIL - SPEC, IEC, or UL listings, to ensure reliability and safety.

Cost and Availability

Evaluate the cost of the connector and its availability from reputable suppliers. Consider the initial purchase cost, maintenance costs, and long - term availability for future replacements or expansions.

Customization Options

Determine if you require any specific customization options, such as special pin arrangements, keying options, or unique features tailored to your application. Some manufacturers offer customization services to meet specific requirements.

Reliability and Durability

Evaluate the reliability and durability of a connector by considering factors such as the number of times it can be plugged and unplugged, contact resistance, mechanical strength, and resistance to vibration and shock. Choose connectors that have a good reputation in your industry or positive customer reviews.

Amissiontech is an industry leader in providing a wide range of high-quality circular connector solutions. With state-of-the-art technology, strict quality control, and extensive industry experience, Amissiontech is able to meet your diverse needs. If you are looking for the right circular connectors for your project, don't hesitate to contact Amissiontech. Our professional team will be happy to serve you and provide you with the best connection solution to help your project move forward smoothly.

In short, circular connectors are an integral part of modern electrical systems. Their reliability, versatility and durability make them suitable for a wide range of application scenarios in many industries. By taking a closer look at all aspects, including types, components, and selection criteria, you'll be able to make an informed decision when choosing a circular connector for your specific needs. Whether you're in industrial automation, aerospace, medical or other fields, the right circular connector will ensure a smooth electrical connection and enhance the performance of your equipment.
