How IO-LINK Works: Understanding the Smart Communication Technology

IO-LINK is a standardized point-to-point communication protocol used in industrial automation to connect sensors, actuators, and other devices to higher-level control systems such as PLCs (Programmable Logic Controllers). Unlike traditional analog and digital interfaces, IO-LINK enables intelligent data exchange between field devices and control systems, providing enhanced diagnostics, parameterization, and monitoring capabilities. This article explains how IO-LINK works, its key components, and its benefits in modern automation environments.

1. What is IO-LINK?

IO-LINK is an open standard communication protocol (IEC 61131-9) that allows for bidirectional data exchange between sensors or actuators and an IO-LINK master device. The master device, typically connected to a PLC or other higher-level controller, communicates with multiple IO-LINK-enabled devices through standard unshielded 3-wire cables.

The key difference between IO-LINK and traditional point-to-point communication is that IO-LINK provides both process data and additional information, such as diagnostics, configuration, and device status, all over the same connection. This enhanced data exchange improves the functionality and flexibility of automated systems.

2. Key Components of IO-LINK

An IO-LINK system consists of the following key components:

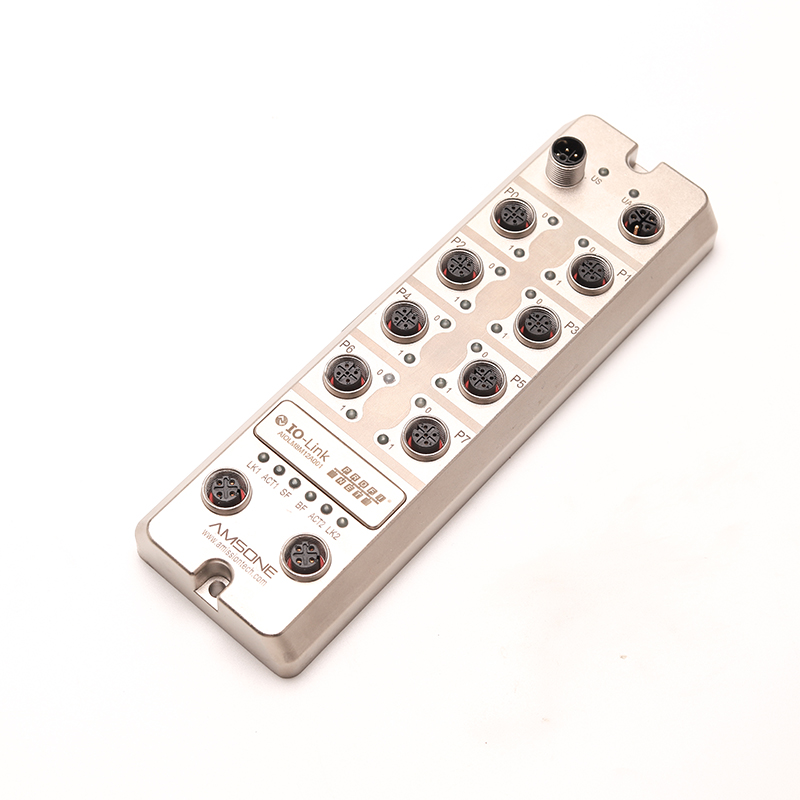

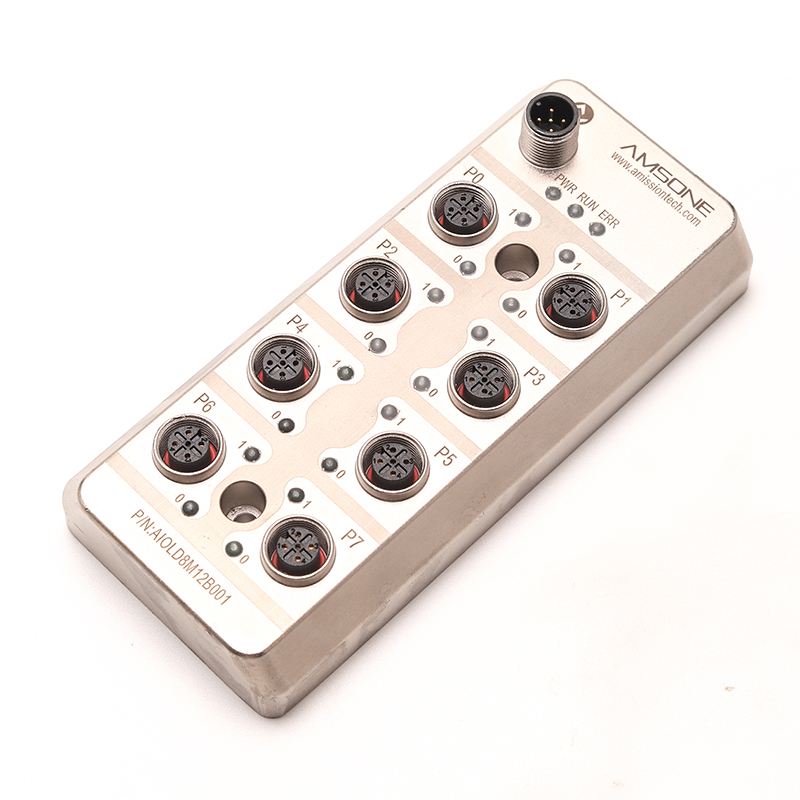

• IO-LINK Master: The master is responsible for connecting the field devices to the control system. It manages the communication between the devices (sensors, actuators) and the higher-level controller (e.g., PLC). An IO-LINK master typically has multiple channels (ports) for connecting several IO-LINK devices at once.

• IO-LINK Devices: These are field devices like sensors or actuators that support IO-LINK communication. Unlike traditional devices that only transmit raw data, IO-LINK devices can send additional information, such as diagnostic data or configuration parameters, to the master.

• Standardized Cables: IO-LINK does not require special cables. Instead, it uses standard, unshielded 3-wire cables (up to 20 meters long) to connect devices to the IO-LINK master, making installation easy and cost-effective.

PLC or Control System: The IO-LINK master communicates with the higher-level control system, such as a PLC, via fieldbus protocols like PROFINET, EtherCAT, or Ethernet/IP. This allows the control system to receive data from the devices and send commands to them.

3. How IO-LINK Works

The basic operation of IO-LINK can be broken down into several key steps:

a. Point-to-Point Communication

Unlike traditional fieldbus networks, which can have complex topologies, IO-LINK uses a point-to-point communication structure. Each IO-LINK device is directly connected to the IO-LINK master via a single port. This simplifies network design and reduces installation complexity.

b. Bidirectional Data Exchange

IO-LINK enables bidirectional communication between the master and the device. This means that data flows in both directions: the device sends process data (e.g., sensor readings) to the master, and the master can send configuration settings or commands back to the device.

For example, an IO-LINK sensor can transmit real-time temperature or pressure readings to the master while also receiving commands to change its operating mode or threshold settings.

c. Process Data Transmission

Process data is the key information that an IO-LINK device sends during operation. This could include values like temperature, position, pressure, or proximity, depending on the type of device. Process data is continuously transmitted in real-time to the IO-LINK master, allowing for accurate and up-to-date monitoring of field conditions.

d. Parameterization

One of the biggest advantages of IO-LINK is the ability to remotely parameterize devices. Instead of manually adjusting each sensor or actuator, operators can modify settings like sensitivity, thresholds, and operating modes directly from the control system or IO-LINK master. This reduces downtime, simplifies commissioning, and allows for flexible system adjustments.

For instance, a proximity sensor's range can be adjusted remotely without having to physically access the device.

e. Diagnostics

IO-LINK devices provide extensive diagnostic information. Unlike traditional devices that only indicate whether they are working or not, IO-LINK devices can send detailed status updates, such as device health, error codes, and maintenance alerts, to the master. This proactive diagnostics capability helps operators identify issues before they lead to system failure, allowing for predictive maintenance and reducing unplanned downtime.

f. Automatic Device Replacement

If an IO-LINK device fails and needs to be replaced, the new device can be automatically configured by the IO-LINK master. The master stores the configuration settings of each device and applies them to the new device when it is connected. This "plug and play" feature reduces the need for manual intervention during maintenance and ensures that the system continues operating smoothly.

4. Benefits of IO-LINK

IO-LINK offers several significant advantages over traditional communication protocols, making it ideal for modern industrial automation:

• Enhanced Diagnostics: IO-LINK provides real-time diagnostic data that allows for early detection of potential issues, reducing downtime and improving overall system reliability.

• Easy Configuration and Parameterization: With remote parameterization, operators can adjust device settings from the control system without the need for manual calibration on-site. This saves time and increases operational flexibility.

• Cost-Effective Installation: IO-LINK uses standard 3-wire cables, eliminating the need for specialized or expensive cabling. This reduces installation costs and simplifies system design.

• Scalability: IO-LINK networks are easily scalable, allowing for additional devices to be integrated into the system without major infrastructure changes.

• Automatic Device Replacement: The automatic configuration of replacement devices streamlines maintenance procedures and reduces the risk of human error during reinstallation.

• Integration with Existing Systems: IO-LINK works alongside traditional fieldbus and Ethernet-based communication protocols, allowing for seamless integration with existing industrial networks.

IO-LINK represents a powerful and flexible communication solution for industrial automation, enabling enhanced diagnostics, remote parameterization, and efficient data exchange between field devices and control systems. Its ease of installation, cost-effectiveness, and scalability make it an ideal choice for a wide range of applications. As industries continue to move toward smarter and more efficient automation systems, IO-LINK will play an increasingly important role in improving overall operational performance and reducing downtime.
